Description

With This 2HE rackspace unit, you can switch (silently!!) between 5 amps, and rout it to 3 independent outputs.

The outputs can be cabs, or dummy loads for recording/FOH like an OX or similar.

The AS5 can be implemented in a live setup, as well as in a studio., and fully controlled with Midi.

The balanced line out can feed for example your stereo effects. In this way, you can create a 3 way system (Wet/Dry/Wet).

With the AS5 you can independently manage midi or manual operation for “amps”,
“cabs/outputs” or “mute”.

Note that the AS5 can only load 1 Cab/output at the time!

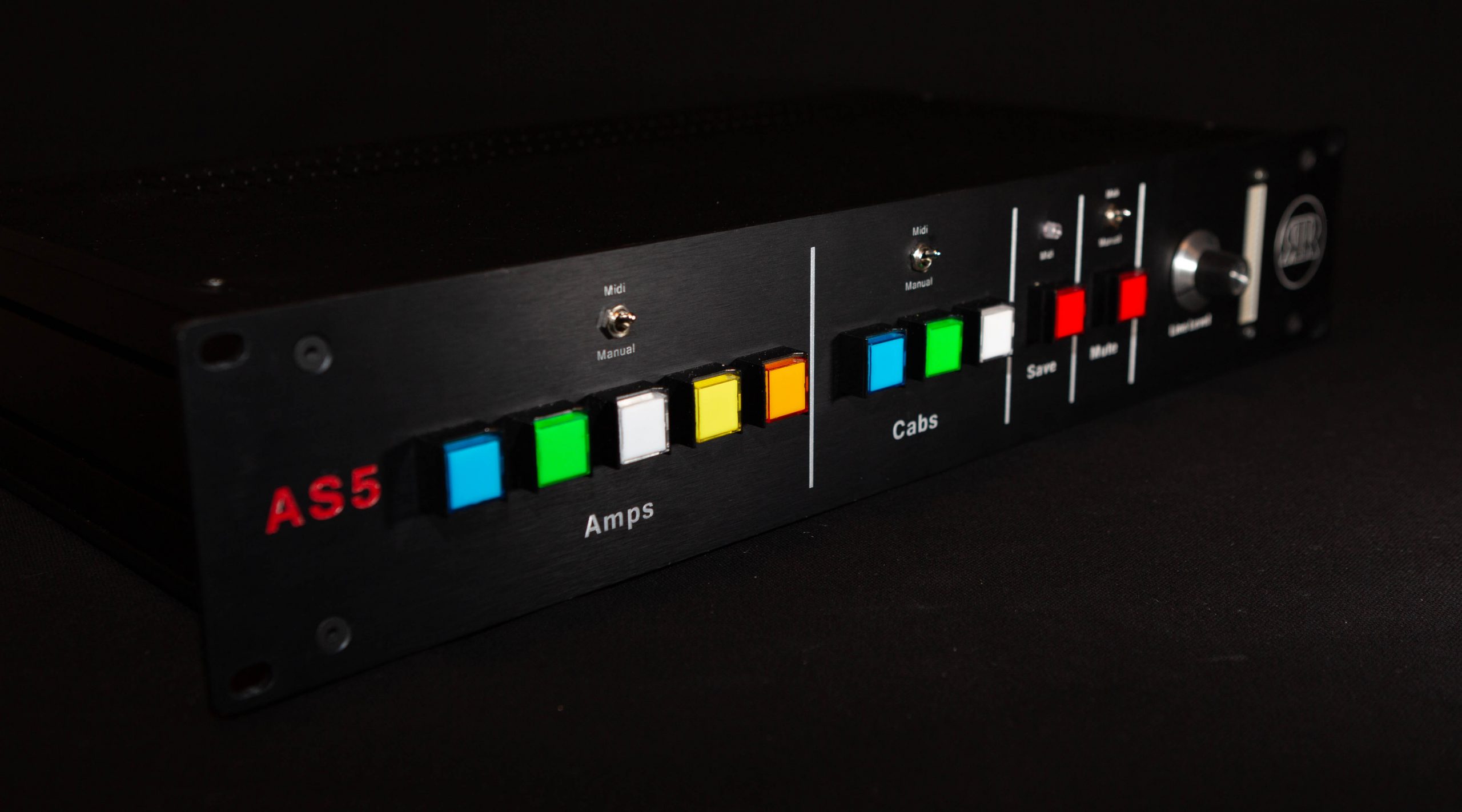

Front panel controls:

• 5 amp buttons to select desired amp.
• 3 Cab buttons to select desired cab/output.
• Save button, to save preset in the present Program Control (midi).
• Mute button, to mute all amps inputs.
• 3 midi/manual switches, so you can choose independently to let the amps/cabs/mute respond to midi or not.
• Line Level:  Controls the amount of signal sent from the Amps to the Line Output on the rear panel.

Rear Connections:

• Input – Balanced 3 pin XLR. (for example IPS6/PDI/RR2824)
• To Amp Input: Mono ¼” jacks. Outputs are floating from ground thru a high quality audio transformer.
• From Speaker Outputs: Mono ¼” jack. Accepts speaker output from each Amp.
• Cabs/Output: Mono ¼” jack. Connect speaker/loads. (Selecting the Cab without a proper load, can severely damage the amplifier).
• Line Out:  Line out can be used to feed the SMX5 (stereo effect mixer).
• Midi in and thru (5 pin Din)
• Neutrik Power-con connector to supply worldwide power from 100-240Volts
• Ground lift (disconnects chassis from power supply ground. (only lift when groundloops occur).
