SMX5 – Stereo Effect Mixer

SMX5 – Stereo Effect Mixer

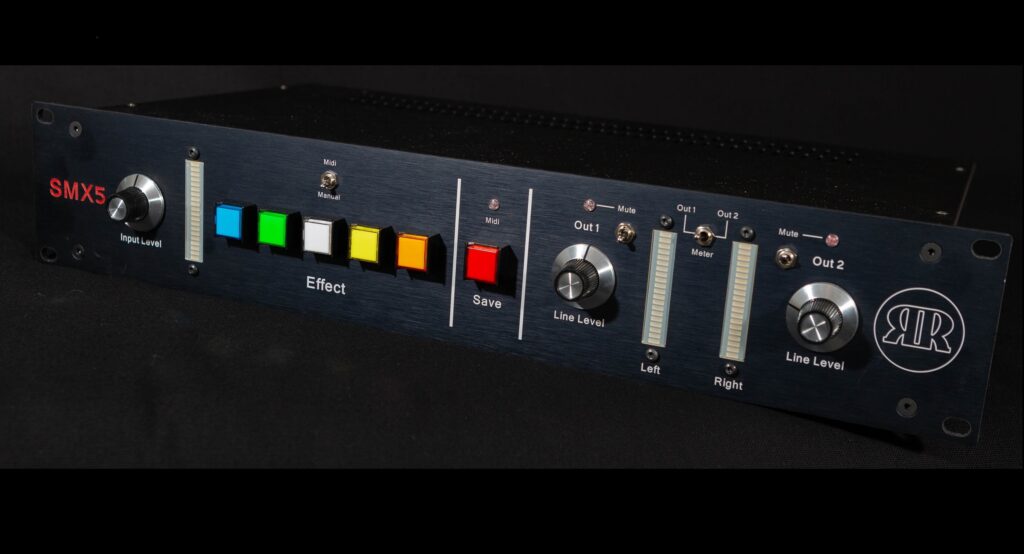

When you want to add stereo effects to your dry sound, you have many possibilities. With this 2HE rackspace unit, you can mix up to 5 (pro, +4dB) stereo effect units in an 3way (Wet-Dry-Wet) system. (All in- and outputs are balanced, and midi controllable!) Main in- and outputs have high quality audio transformers.

And yes, this Stereo effect Mixer can be used Live and/or in the studio. And has on board features that will be very handy both live and studio! There are two separate stereo output sections that can feed stereo (tube) amps (in a live set, or a monitor set in the studio), and a balanced output set that can feed the FOH (or your recording device). The balanced output has a analog cab-simulation on board.

With midi you have control to feed the effect units with signal.

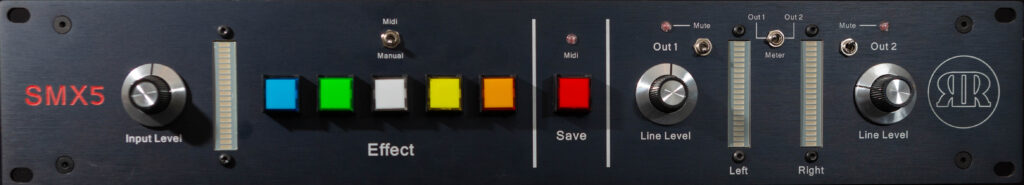

Front panel controls:

• Input level. Sets the level of the balanced input.
• VU-meter to monitor the incoming signal.
• 5 Effect buttons to select desired effects.
• Save button, to save preset in the present Program Control (midi).
• Midi/manual switches, so you can choose to let the effects respond to midi or not.
• Line Level (out 1):  Controls the amount of Stereo signal to the floating outputs on the rear panel.
• Line Level (out 2):  Controls the amount of Stereo signal to the(compensated balanced outputs on the rear panel.
• 2 mute switches. Manual mute an stereo output.
• Meter read switch. Select which Stereo output you want to monitor.

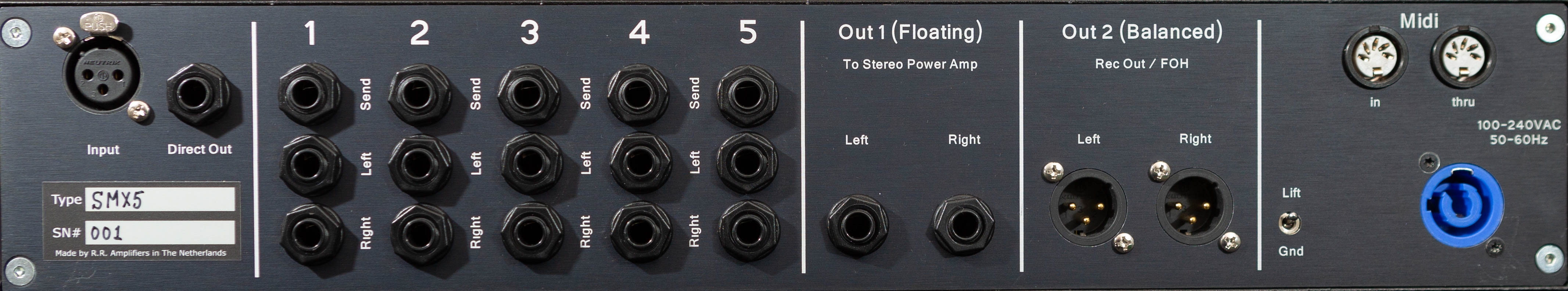

Rear Connections:

• Input – Balanced 3 pin XLR. (for example AS5)
• Direct out: TS ¼” jack. Buffered direct output.
• Effect Sends 1-5: TRS ¼” Jacks, balanced audio. To effect Inputs. Can also be used to feed unbalanced effects with a standard Mono (TS) ¼” jack.
• Effect Return 1-5, left and right: TRS ¼” jacks from effect outputs. Also TS connection (unbalanced) can be connected.
• Out 1, Left & Right: Outputs (TS- connection) are floating from ground thru high quality audio transformers.
• Out 2, Left & Right: Compensated (analog cab simulation) balanced XLR outputs thru high quality audio transformers.
• Ground lift (disconnects chassis from power supply ground. (only lift when groundloops occur).
• Midi in and thru (5 pin Din)
• Neutrik Power-con connector to supply worldwide power from 100-240Volts

When you want more information, please , contact us.
